Soulnote M-3 Mono Power Amplifier
We think
We think the Soulnote M-3 monoblock is a statement in terms of performance and musicality. This amplifier demonstrates just how much substance a high-end monoblock can contain – it combines raw power with subtle timing without compromise. Those who value control, dynamics, and a vibrant sound will find the M-3 to be a device that not only measures but, above all, lets you hear it. Not just a powerhouse, but a musical companion for life.
Product presentation
The Soulnote M-3 is a Series 3 monoblock power amplifier that must be used exclusively as a single channel – two units are required for stereo. The cabinet is massive, with external dimensions of approximately 340 × 251 × 512 millimeters and a weight of approximately 31 kilograms per unit. Each monoblock has a single push-pull output stage, designed with a four-stage Darlington structure, and uses industrial-grade “can-type” power transistors. The M-3 offers an output power of 160 watts into 4 ohms , combined with a very wide frequency response of 2 Hz to 200 kHz (±1 dB) . It has a sensitivity / input voltage of 1 volt at 25 kΩ input impedance and a gain of 22 dB . The power supply is powerful and of high quality – the power transformer, filtering, and rectification are constructed to ensure stability and quality even under heavy loads.
Special features
What makes the M-3 special:
Non-Negative Feedback Circuit (Type-R) : the voltage amplification stages deliberately do without negative feedback to make the sound more direct and clearer.

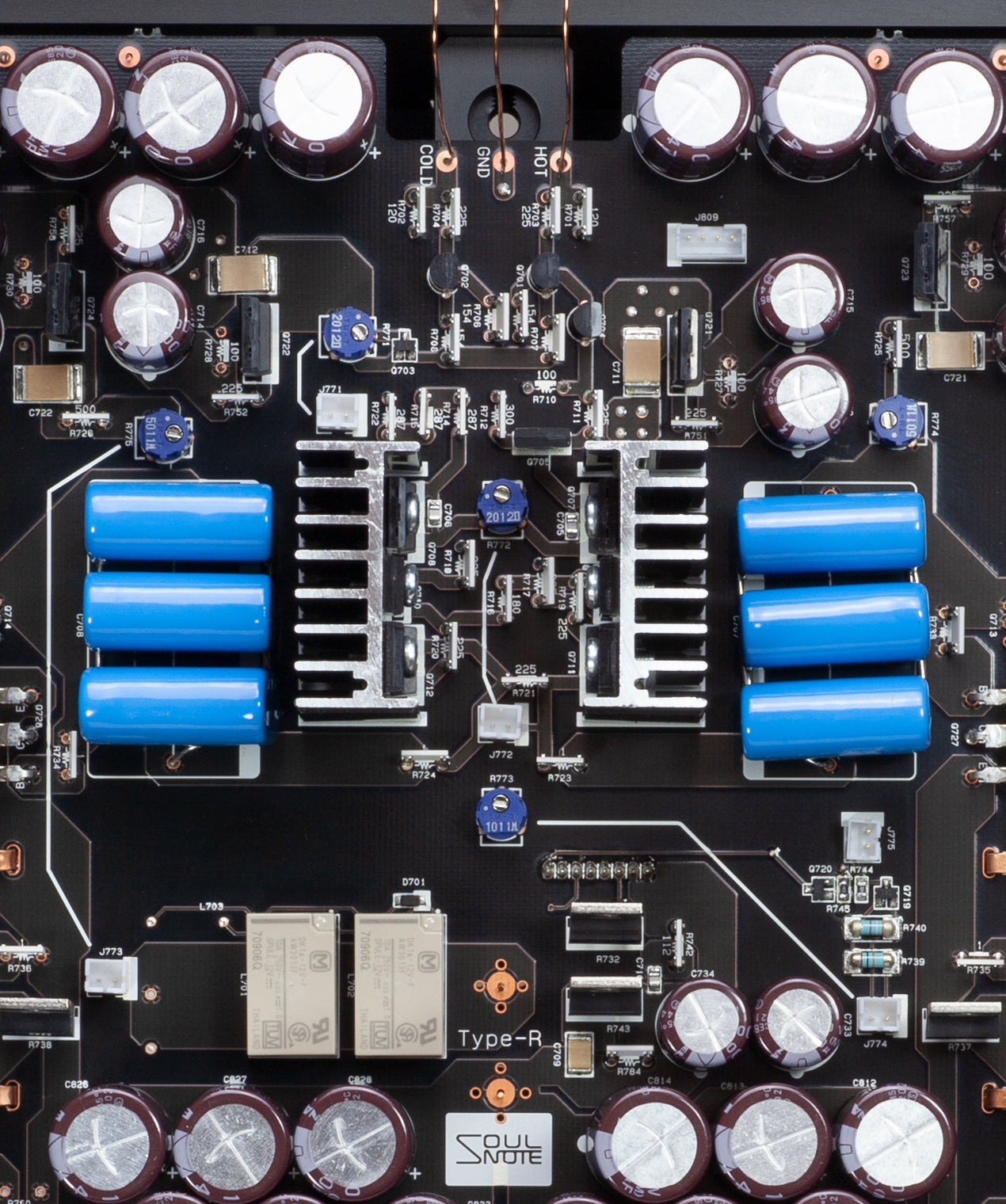

Four-stage Darlington cascade design with can-type power transistors: ensures high current performance and control, especially with demanding loads.
Copper busbars & copper heatsinks : The heatsink also acts as a busbar, which reduces long conduction paths and thus parasitic effects.

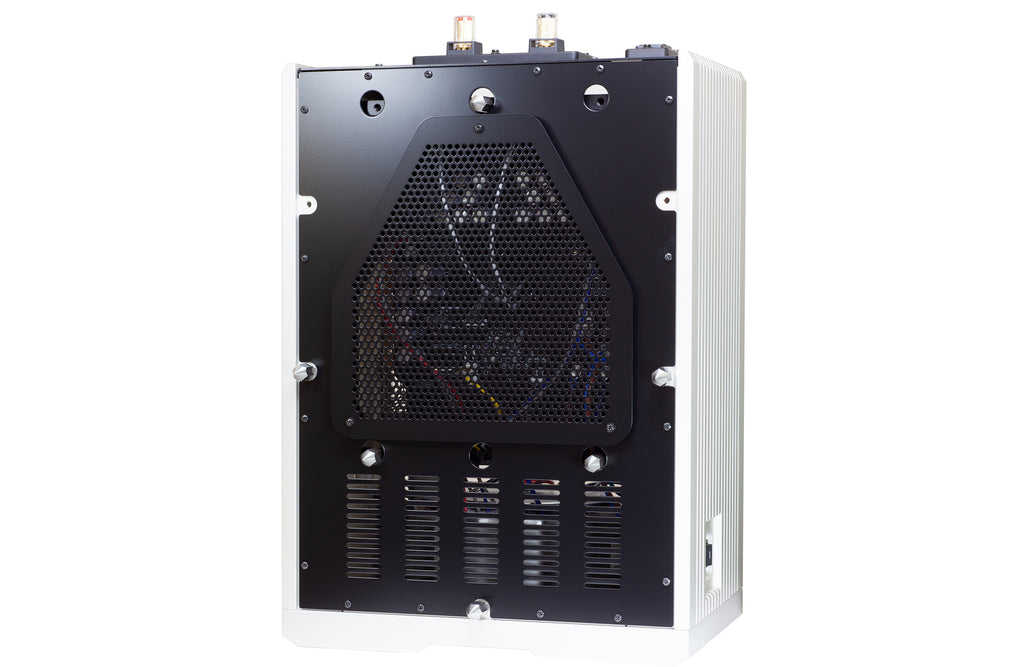

Mechanically complex decoupling : The housing, transformers, connectors and components are not rigidly fixed, but are mounted decoupled, often with spikes and separate containers to minimize vibrations and unwanted resonances.

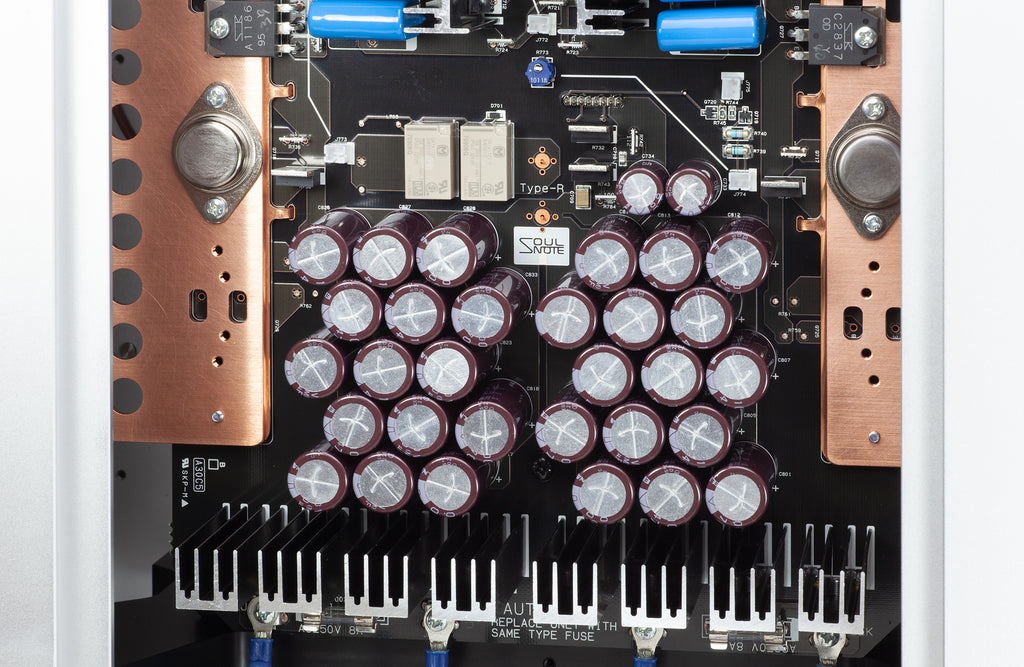

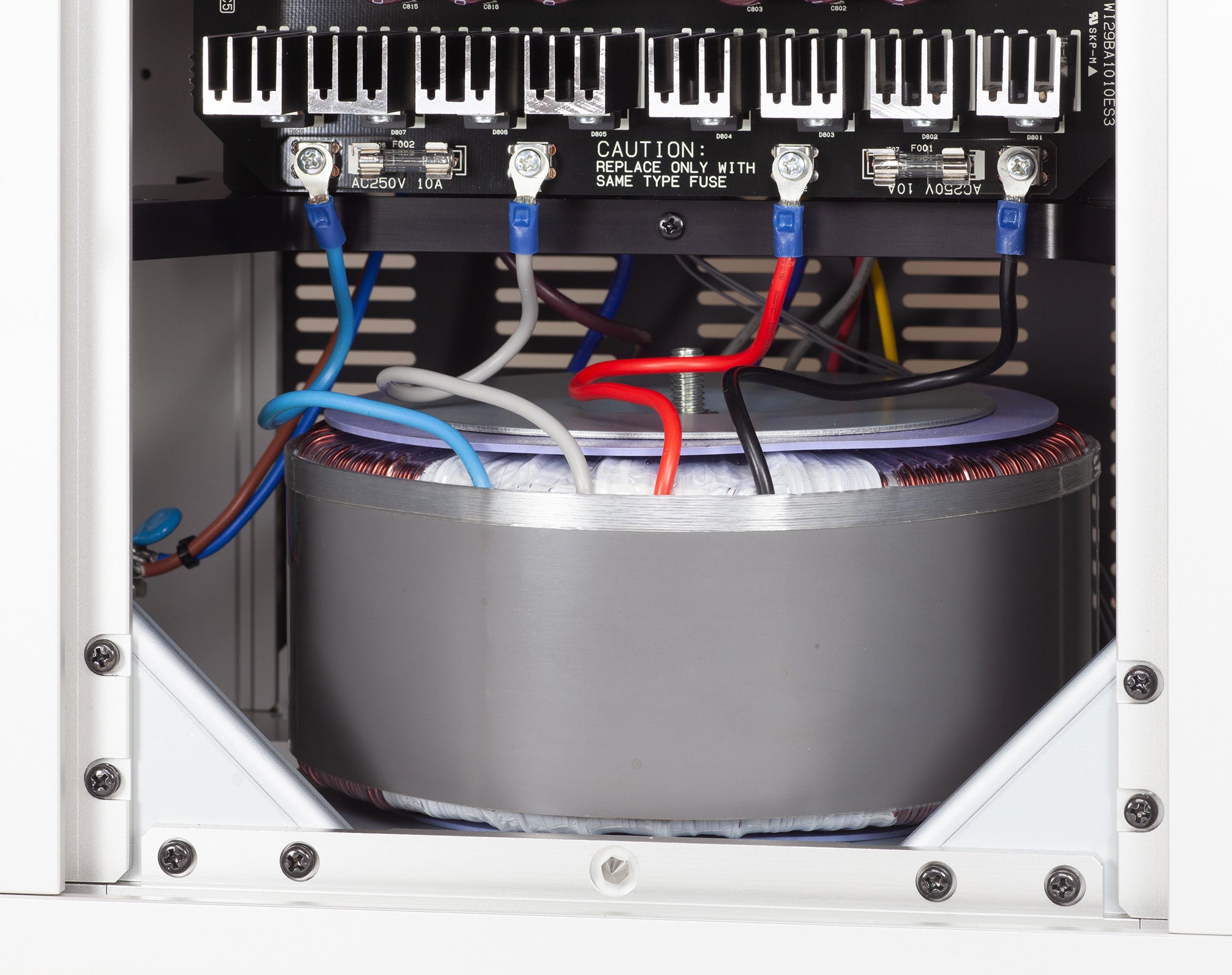

Powerful power supply and high-quality components in rectification and filtering – specially selected high-impedance, low-capacitance film capacitors and silicon carbide (SiC) diodes in some versions.
Technology & Materials

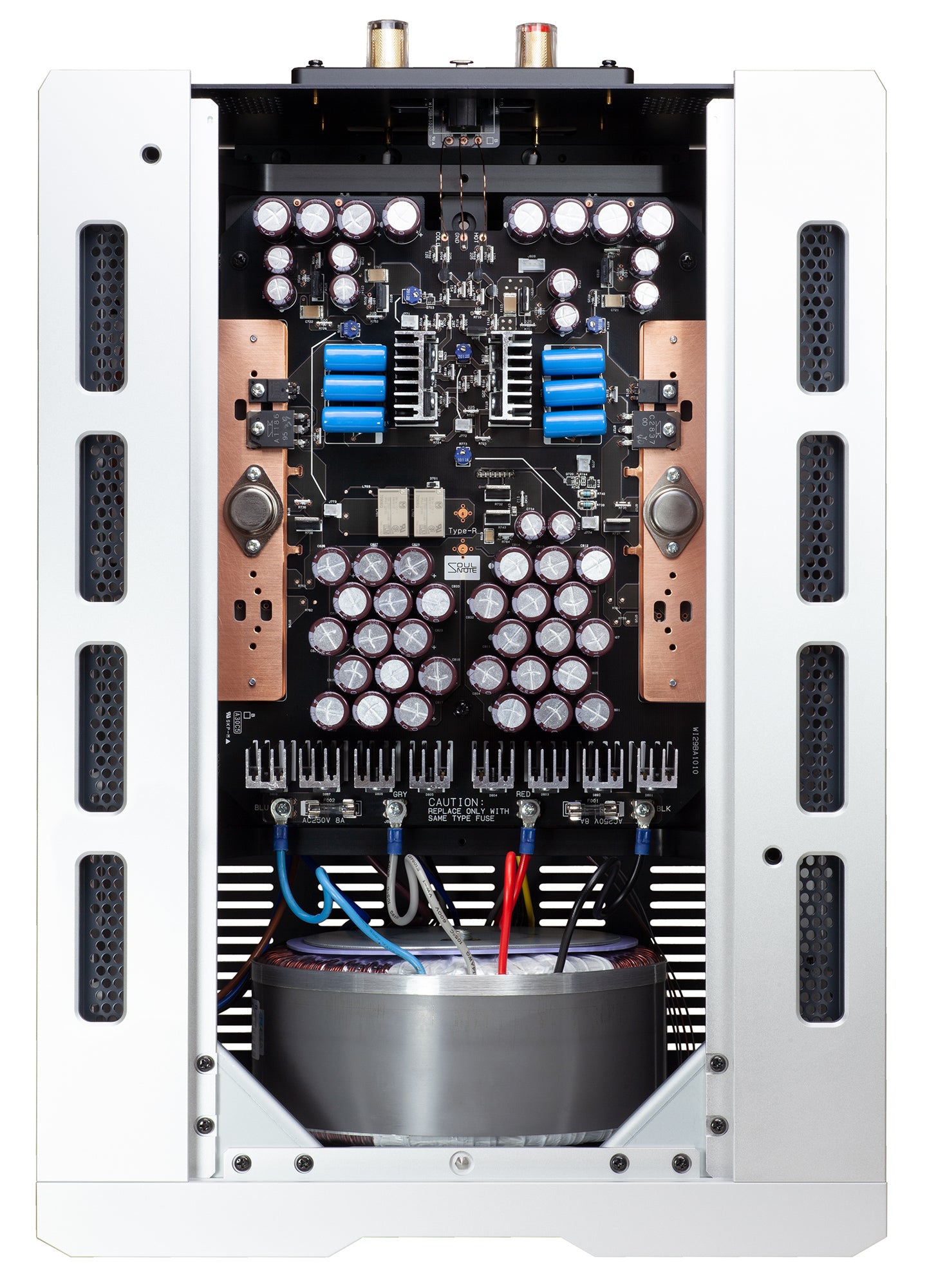

Inside the M-3, you'll find materials and design choices you'd expect only in the highest-end amplifiers. The power transistors in metal housings (TO-3 or "can type") offer robust mechanical mounting and optimal heat dissipation. The Darlington output ensures high current reserves and stability even at low impedances. The layout minimizes signal paths, and the use of copper busbars reduces resistance and inductive losses. The filter stages and rectifiers are dimensioned to handle both power requirements and fast pulses. Each monoblock is tuned for power and control without compromising sonic naturalness.
Sustainability & Manufacturing
The Soulnote M-3 is handcrafted in Japan with a high level of vertical integration. The choice of materials, dimensions, and components are designed for durability: solid heat sinks, sturdy terminal fittings, high-quality relays, and precise rectifier components. The weight and construction contribute to the device's thermal and mechanical stability, even during long listening sessions. Furthermore, spare parts supply and service are part of Soulnote's philosophy – the M-3 is not a quickly replaceable consumer device, but an investment.
Technical data (specs)
System: Monoblock power amplifier
Output power: 160 W at 4 Ω
Frequency response: 2 Hz – 200 kHz (±1 dB)
Input sensitivity / input resistance: 1 V / 25 kΩ
Gain: 22 dB
Total Harmonic Distortion (THD): 0.1% at 1W
Operating voltage: 230 V AC / 50 Hz
Power consumption: approx. 110 W
Dimensions: approx. 340 × 251 × 512 mm (W × H × D)
Weight: approx. 31 kg
Finish variants: Premium Silver / Premium Black
Scope of delivery: speaker cable, rack feet / spikes, power cable
Test reports / press reviews
A German-language expert review is not yet available. However, international reviews and forum feedback provide valuable insights:
One review states: "The acoustic experience with the M-3 is electrifying: The transitions between quiet and loud playing are clean, bass attacks come in quickly without rumbling, and the soundstage extends deep behind the speakers. Voices and instruments gain physicality."
Another review praises: "The M-3 delivers impressive control, especially with complex orchestral and chamber music recordings. It manages to bring out details without coming across as overly analytical—rather, everything comes across as balanced and vibrant."
Background / History / Development
Soulnote was founded to create high-end components that are both technically sophisticated and musically immediate. The Series-3 embodies this philosophy particularly consistently. The M-3 builds on previous devices, refining the power supply, mechanical decoupling, and layout. The designer emphasized simple signal paths, high power delivery, mechanical stability, and component selection, as found in names like TO-3 packages and high-quality copper parts—all with a focus on sound over mere numbers.
Basic knowledge
A few key technical points to help you better understand the M-3 :
Monoblock power amplifier means that each channel has its own amplifier unit – this reduces interference between channels, improves channel separation and often allows better performance at low impedances.
Single push-pull output with Darlington construction : Push-pull reduces distortion at high power levels, while Darlington cascades can deliver high gain and current.
Non-Negative Feedback (non-NFB) circuit : Doing without classic feedback loops often means more naturalness in the signal, especially in terms of dynamics and impulse fidelity, but requires very good components and careful design to keep distortion low.
