Soulnote D-3 D/A Converter
We think
The Soulnote D-3 is a digital benchmark that demonstrates how close high-end technology can come to musical naturalness. In an age when many DACs are lost in features and marketing, the D-3 offers clarity, precision, and an almost analog feel when reproducing digital music. It sounds neither cold nor clinical—it comes across as vibrant, nuanced, and organic. Those who value music as an experience and want to discover something new in every recording will find the D-3 a partner that not only reproduces details but brings them to life.
Product presentation

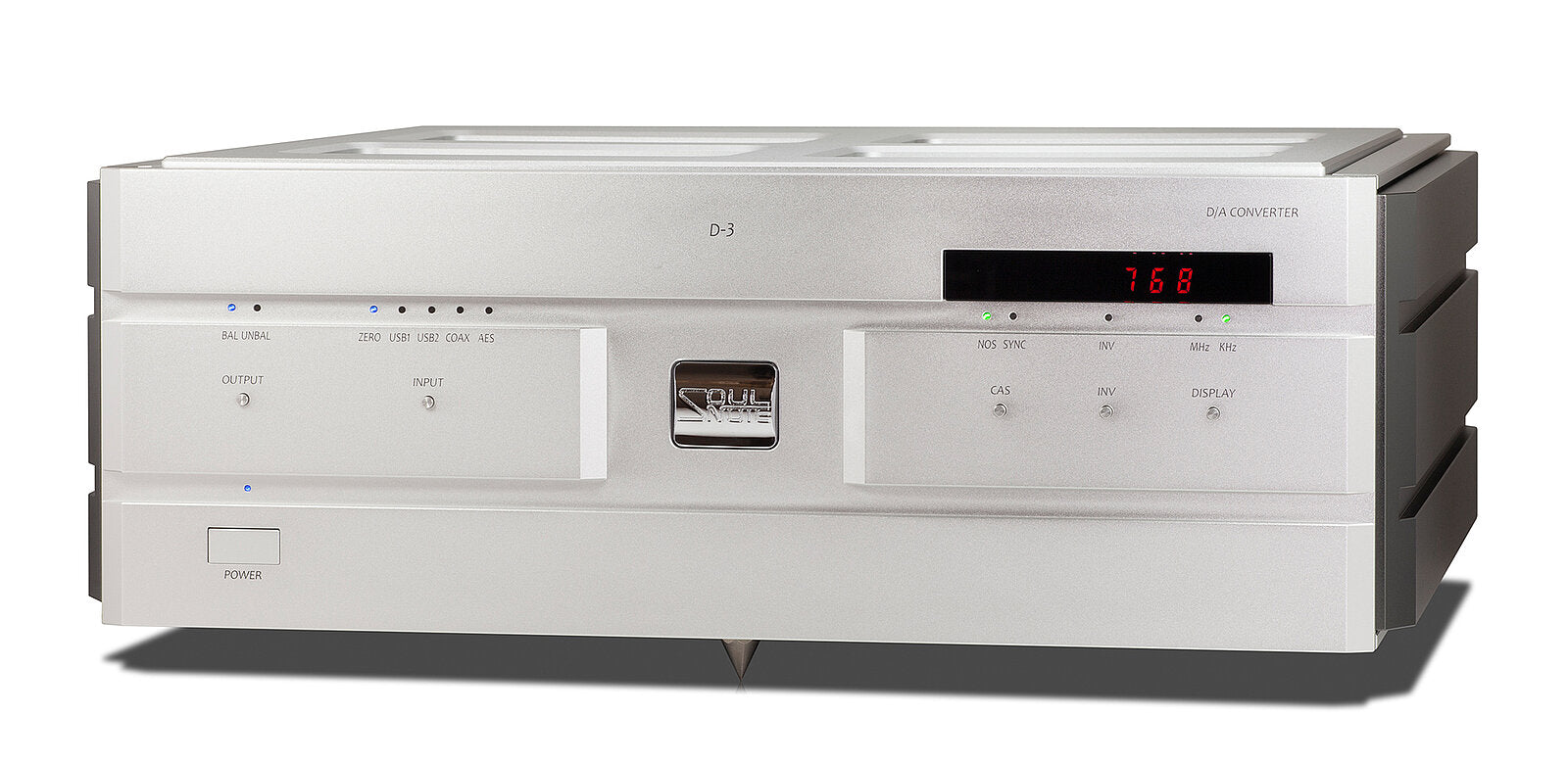

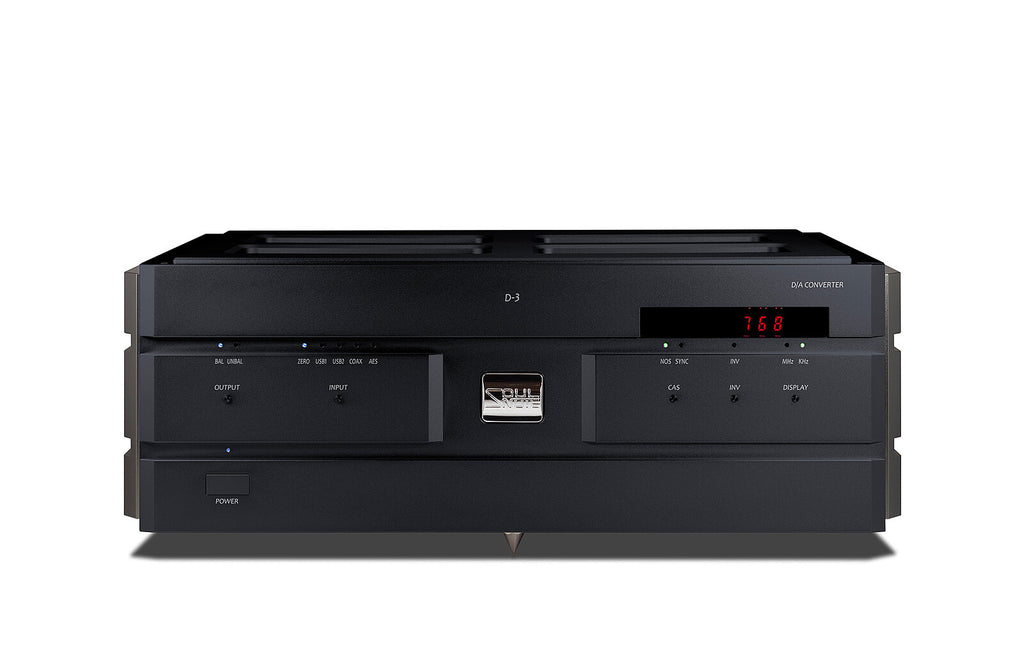

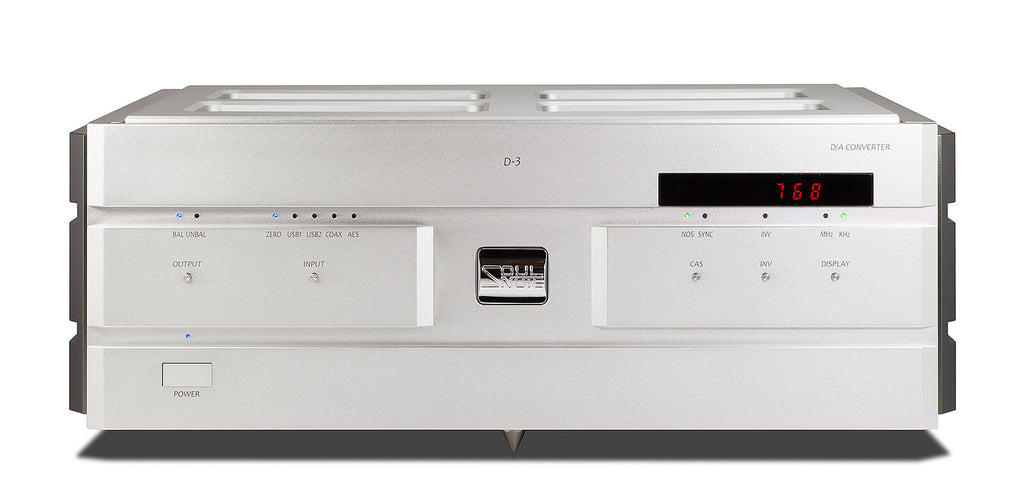

The Soulnote D-3 is a high-end D/A converter from Soulnote's Series 3. Its concept is based on a dual-monaural design, with strictly separated digital and analog sections. Inputs are: Zero Link / USB (Type B) (dual) , coaxial (S/PDIF) and AES/EBU , with an external 10 MHz clock input to further reduce jitter. The analog outputs consist of one XLR (balanced) and one RCA (unbalanced) output. The short signal levels are approximately 5.6 Vrms on XLR and 2.8 Vrms on RCA. The frequency response of the D-3 ranges from approximately 2 Hz to 120 kHz at ±1 dB , with a signal-to-noise ratio of approximately 110 dB and a total harmonic distortion (THD) of approximately 0.008% (in NOS mode at 176.4 kHz) . In terms of power consumption, it is around 48 W , the case measures approximately 454 × 174 × 407 mm and it weighs around 28 kg – solid data that indicates high-quality workmanship.
Special features
What makes the Soulnote D-3 remarkable:

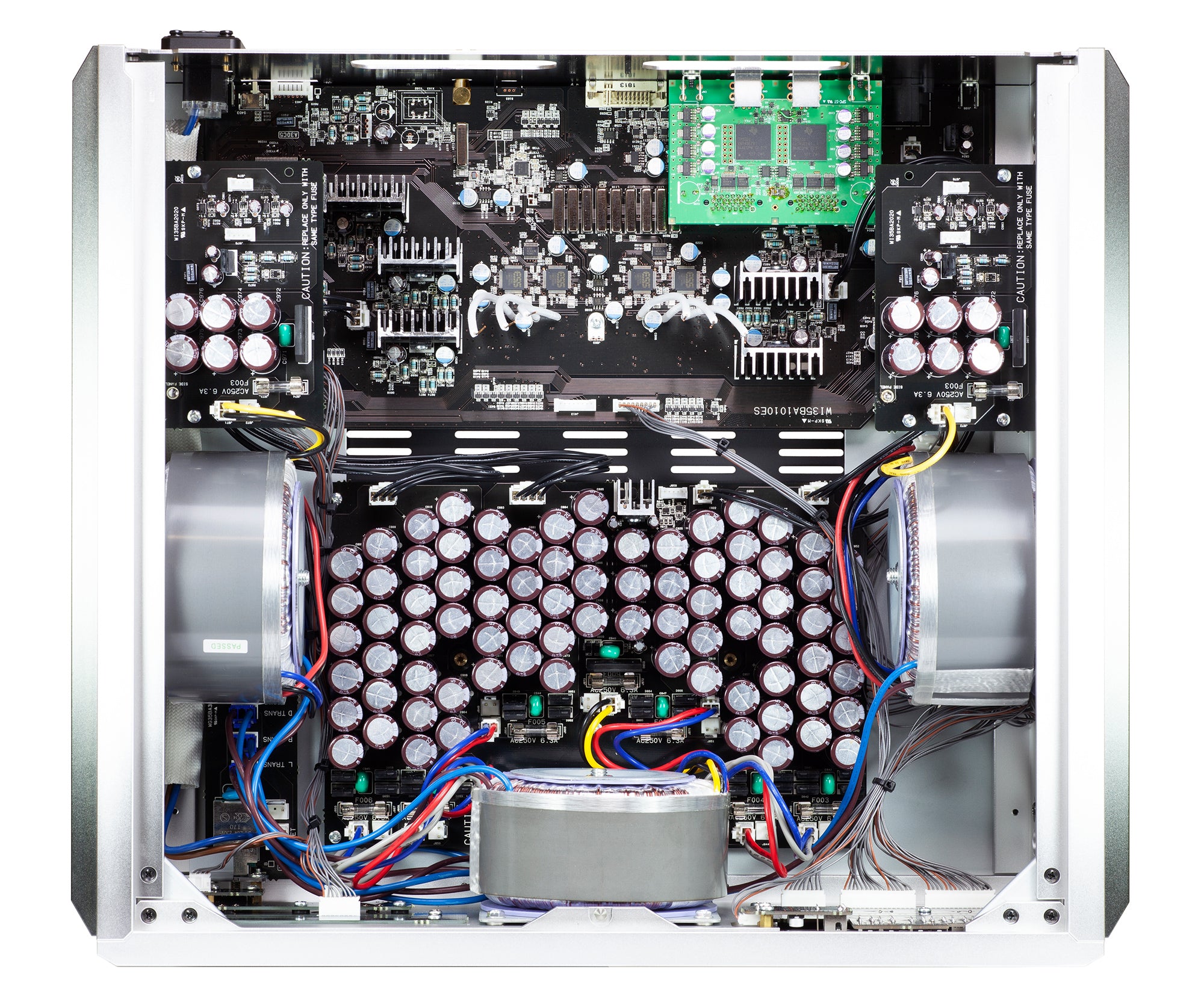

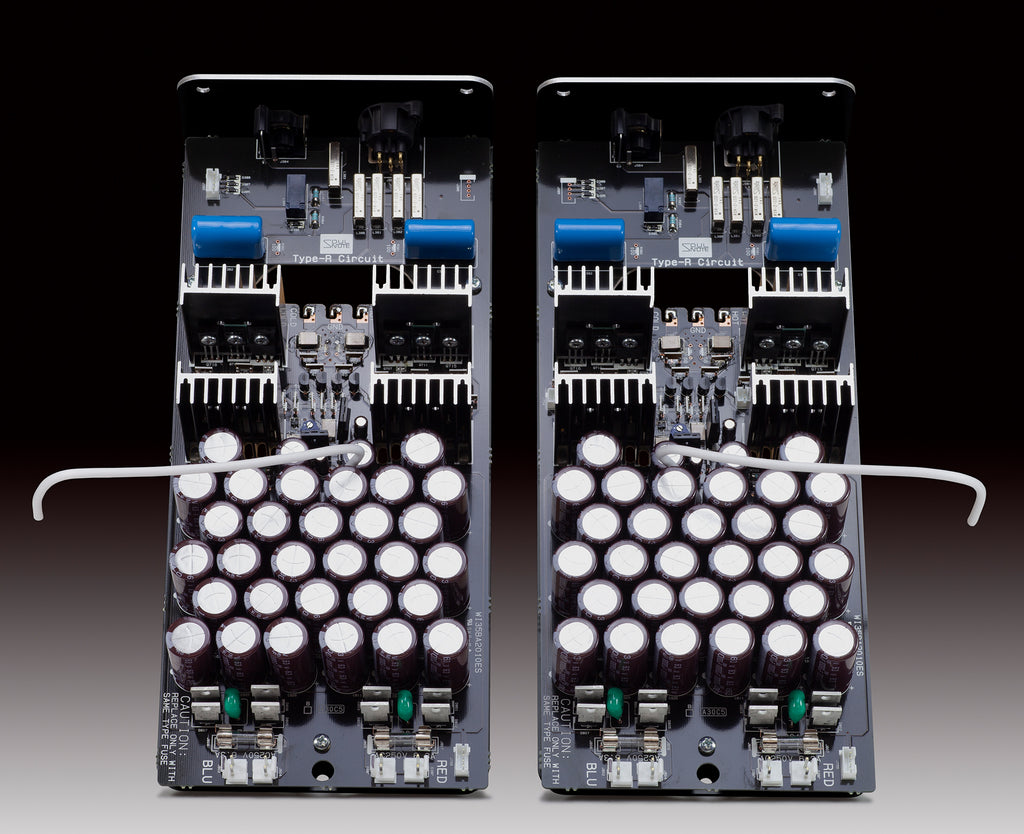

Dual mono construction : both channels have their own power supply, their own circuits, their own layout – digital and analog sections are separate.

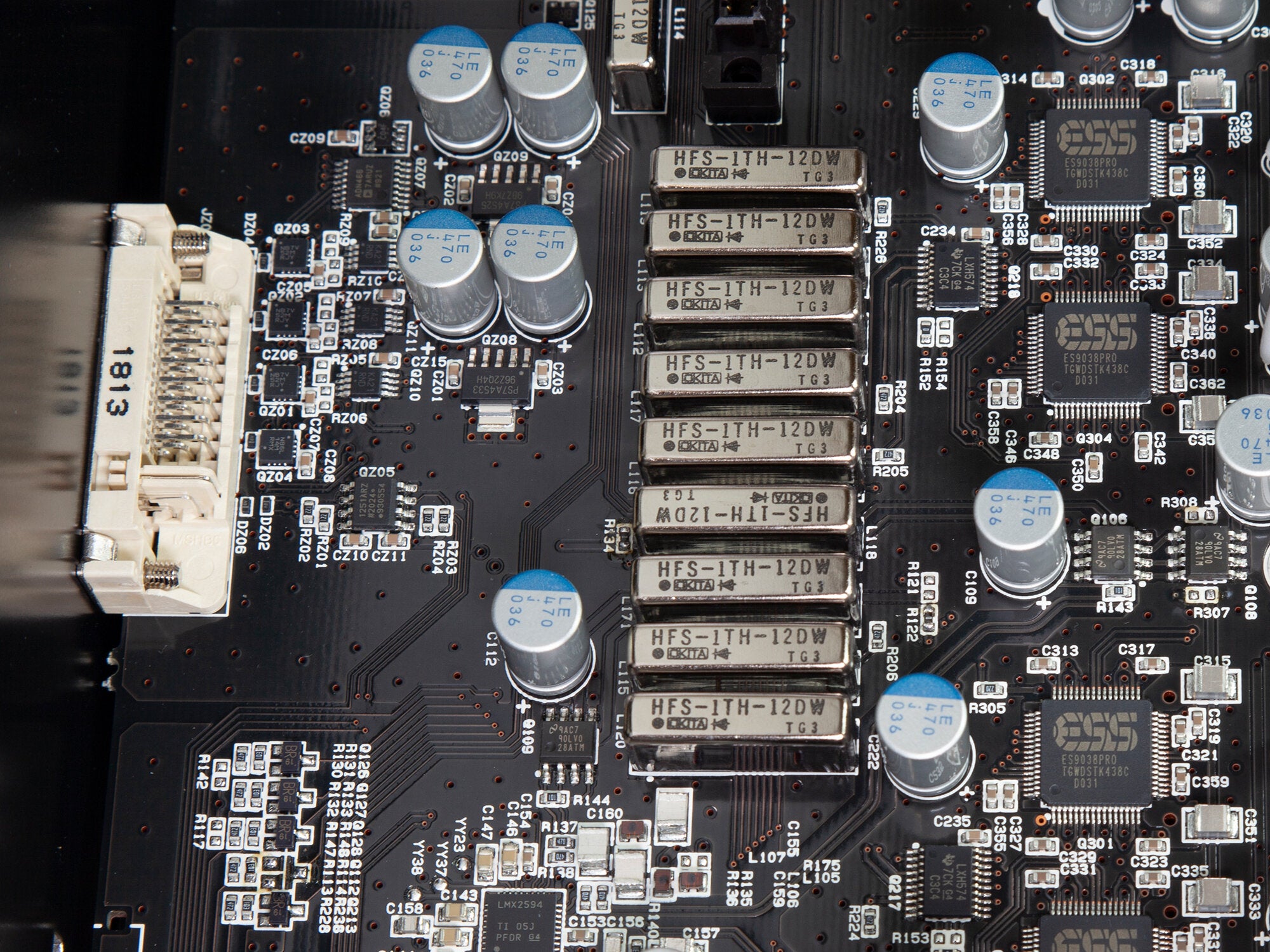

Zero Link technology (including USB and digital inputs) with external clock input to minimize asynchronous signal processing stages.
Primary passive analog filter type : simple, effective filter solutions that leave the signal unaltered.
NOS mode available: For listeners who want to work without oversampling – this reduces pre- and post-ringing.
High-quality material selection & construction : Naked foil resistors, powerful transformers, solid mechanical components and careful layout design for reduced resonances.
Technology & Materials

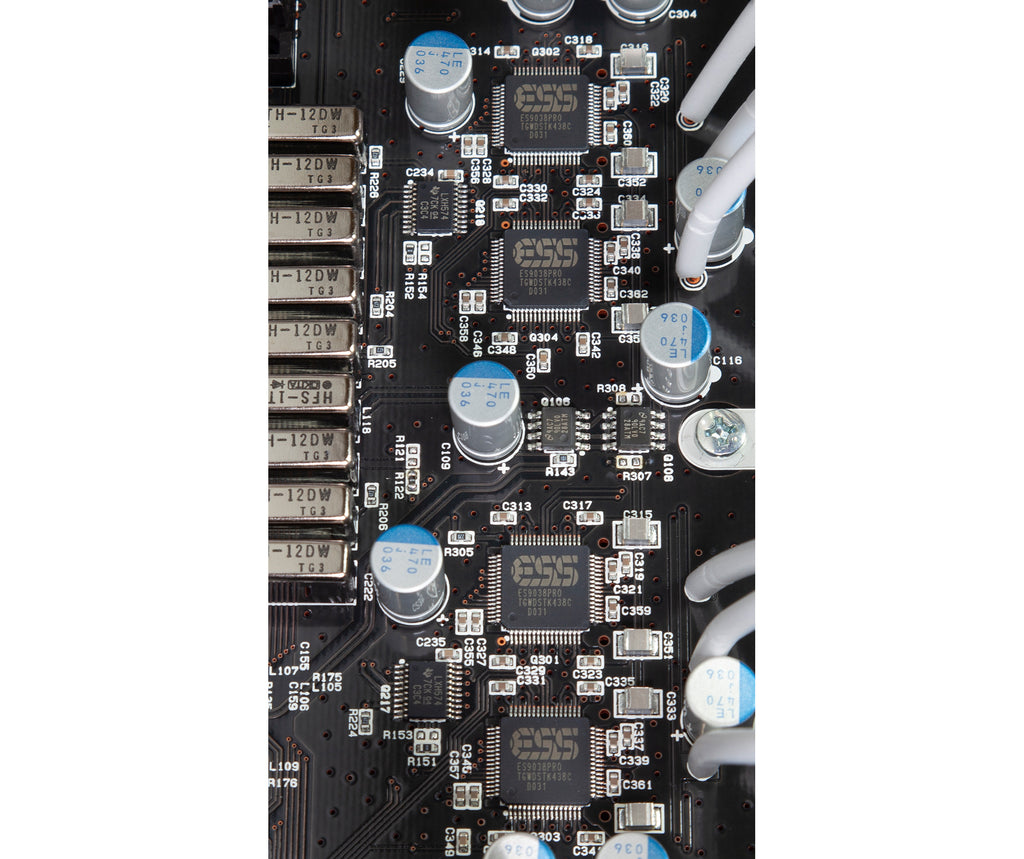

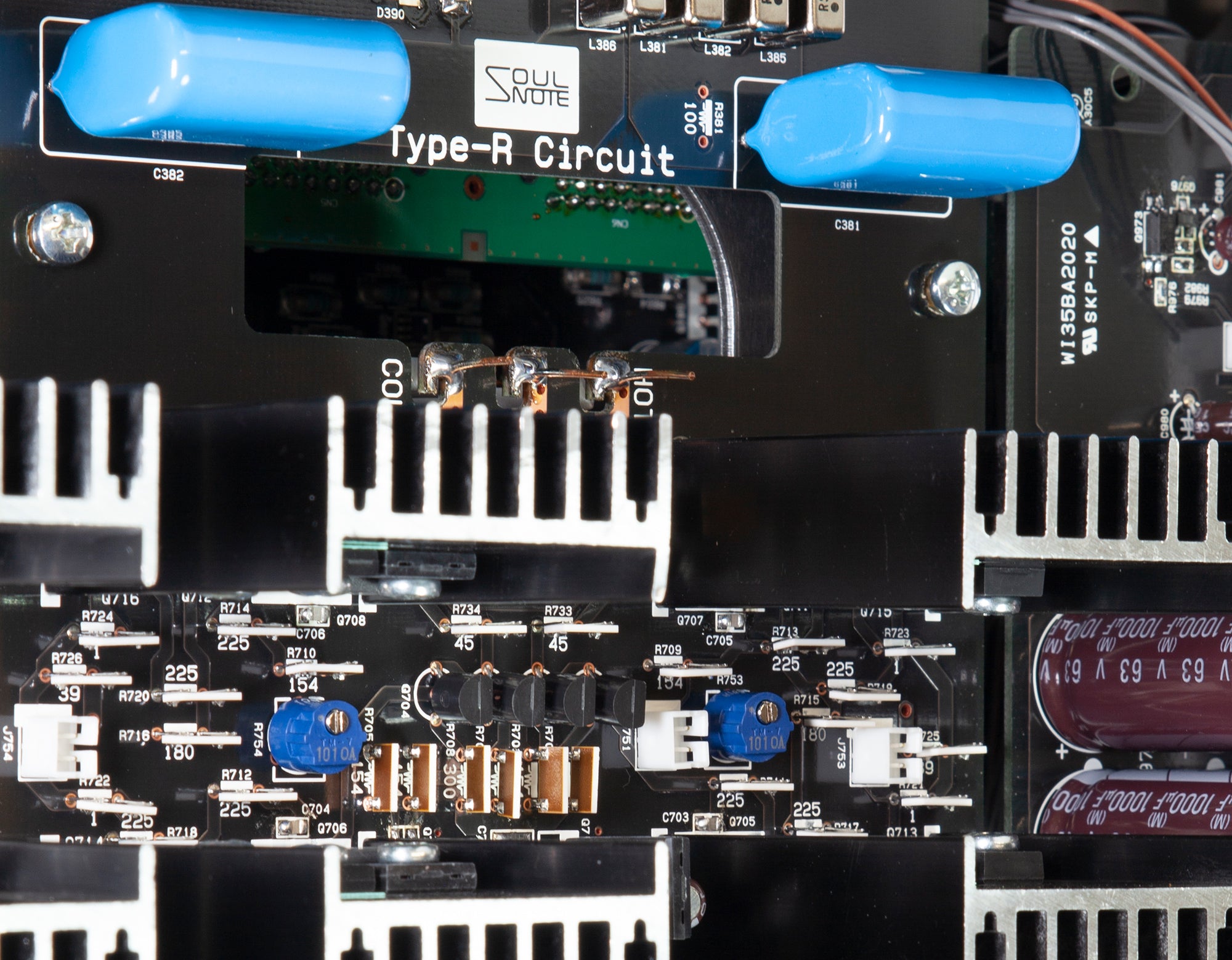

The D-3's technology is ambitious throughout: It utilizes four ES9038PRO DAC chips (two per channel), combined with a discrete non-negative feedback (NFB) circuit. The analog output stage utilizes carefully selected resistors and materials to minimize distortion. The cabinet is resonance-optimized, with mechanical measures such as floating bases and decoupled components to reduce vibration influences. Particular attention is paid to the selection of components with high current delivery and low time lag – ensuring that even complex musical layers are reproduced cleanly, transparently, and spatially.
Sustainability & Manufacturing
The Soulnote D-3 is handcrafted in Japan using high-quality, durable components. The craftsmanship and choice of materials are designed for durability: heavy and stable cabinets, high-quality connectors, and the finest components for transformers and filters. Soulnote offers a solid service and spare parts supply – the D-3 is not a short-lived device, but a long-term investment in high-quality digital playback.
Technical data (specs)

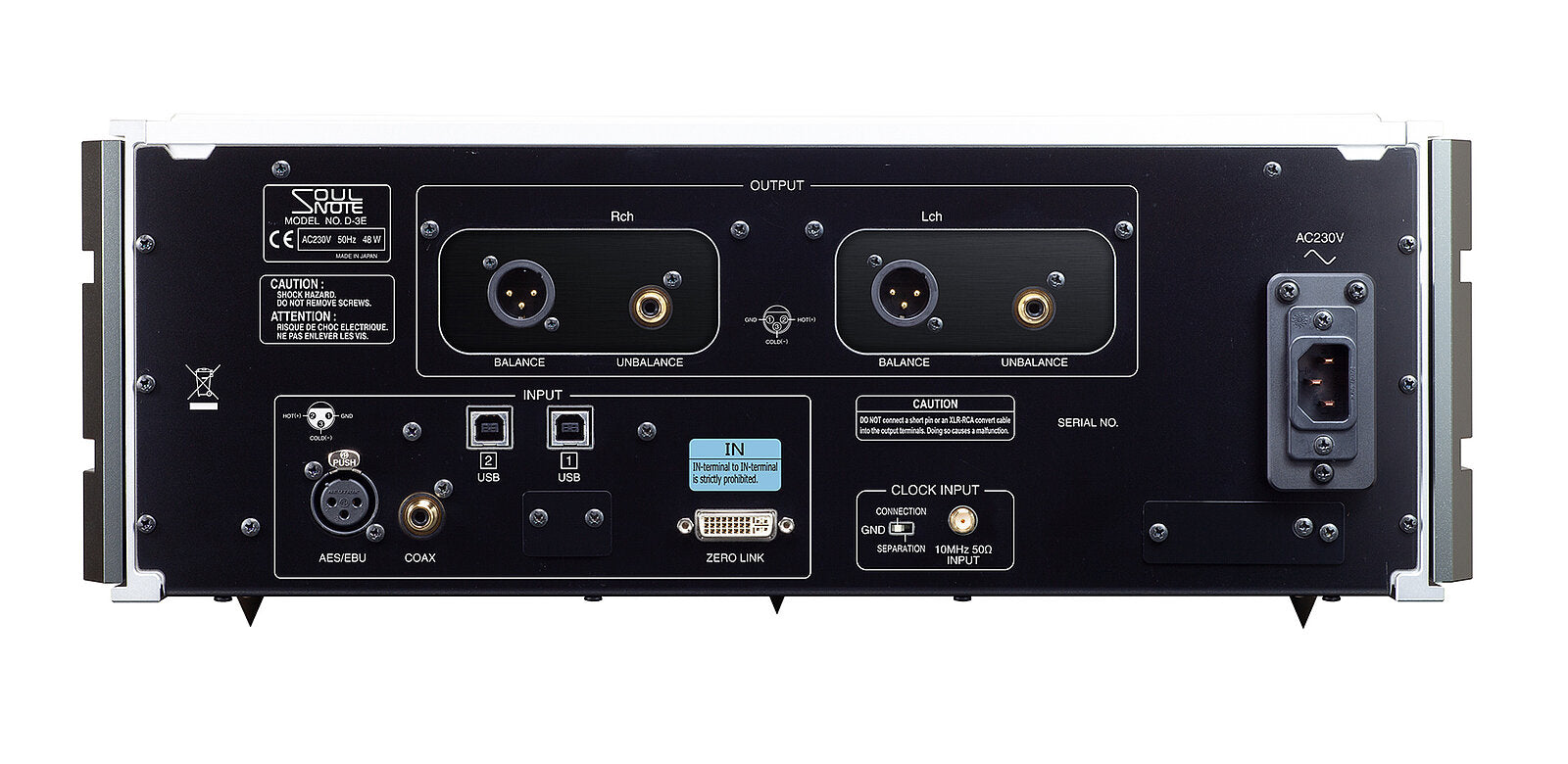

Digital inputs: Zero Link / USB (Type B) (2 pieces), Coaxial (S/PDIF), AES/EBU
External clock input: 10 MHz (SMA 50 Ω)
Analog outputs: 1 x XLR (balanced), 1 x RCA (unbalanced)
Output level: XLR approx. 5.6 Vrms; RCA approx. 2.8 Vrms
Frequency response: 2 Hz – 120 kHz (±1 dB)
Signal-to-noise ratio (S/N): approx. 110 dB
Total harmonic distortion (THD): approx. 0.008% (NOS/176.4 kHz)
Analog filter type: primary passive
Power consumption: approx. 48 W
Dimensions: approx. 454 × 174 × 407 mm
Weight: approx. 28 kg
Scope of delivery: Spike board, spikes, remote control, power cable
Background / History / Development
Soulnote is a Japanese high-end brand founded on the commitment to giving equal importance to technology and music. The Series 3 product line embodies this commitment – digital and analog components are developed with equal care. The D-3 is the digital heart of this series – it demonstrates how Soulnote designs the digital side of music reproduction, focusing on clock quality, signal path simplification, mechanical stability, and material quality.
Basic knowledge
A few key technical points to help you better understand the D-3:
NOS mode stands for "non-oversampling": In this mode, the DAC does not use digital filters that interpolate or oversample the signal. This often results in a more natural reproduction, especially in the impulse response, but also in deviations in the frequency response and noise behavior.

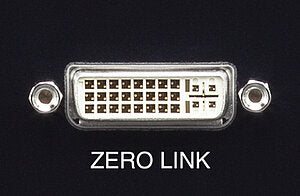

Zero Link is a connection technique that minimizes asynchronous signal processing stages (e.g., different clock circuits), especially when using an external clock. This improves timing, reduces jitter, and can significantly improve the stage and transient response.
