Luxman LMC-5 MC cartridge
We think
The Luxman LMC-5 is the return of a legend—after more than 40 years without a new MC cartridge, Luxman demonstrates how experience, precision, and attention to detail can create a design that impresses both technically and sonically. Anyone looking for a cartridge that doesn't just measure but brings music to life, especially with a rich midrange, controlled bass, and refined top end, will find the LMC-5 a player that enhances the vinyl experience.
Product presentation
The Luxman LMC-5 is a moving coil (MC) cartridge with low internal resistance (4.7 Ω at 1 kHz) and an output voltage of 0.4 mV at 1 kHz / 3.54 cm/s. It is optimized for a tracking force between 2.1 and 2.3 grams , with 2.2 g recommended. The frequency range is from 10 Hz to about 35 kHz in an ideal environment and setup. The recommended load spectrum is about 40 Ω or more , or about 2.5 to 10 Ω when using a step-up transformer. The dynamic compliance is 8 × 10⁻⁶ cm/dyne (at 100 Hz). The weight is about 8.5 grams , which is compatible with many common tonearms.

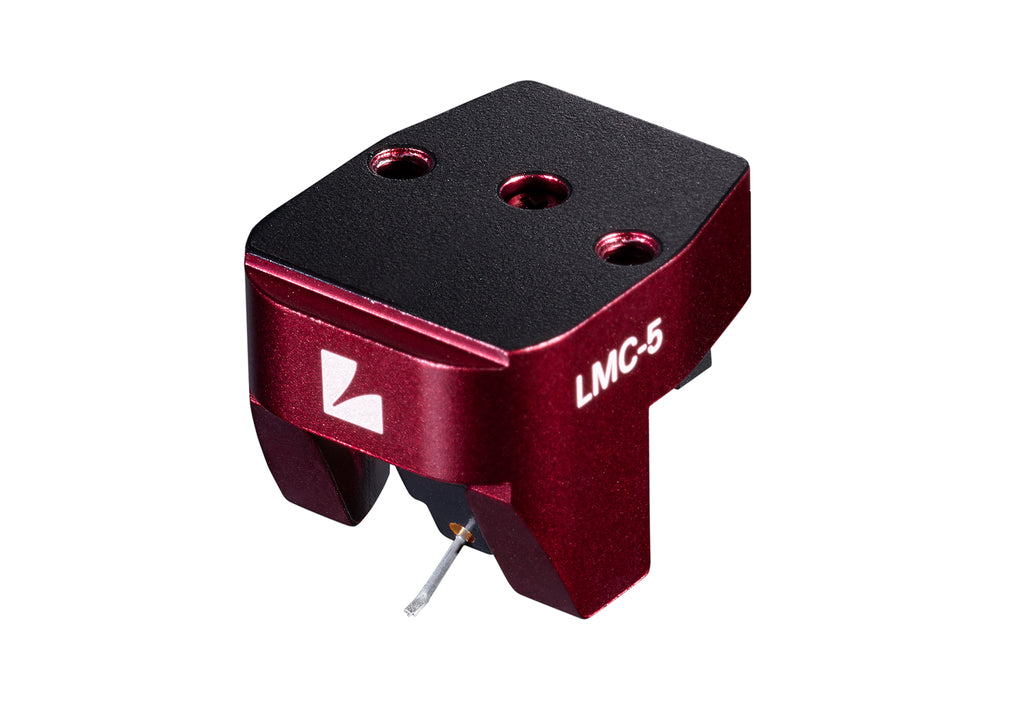

The housing is made of A6063 aluminum , anodized deep red, with an open design to minimize resonance. The stylus is a Shibata profile, particularly suited for precise tracking and detail; the cantilever consists of a thin 0.5 mm diameter aluminum tube.
Special features
Shibata stylus with high tracking accuracy and fine resolution of inner grooves.
Symmetrical coil winding with samarium-cobalt magnet and crossed iron core, which achieves a channel separation of approx. 28 dB and a balanced balance behavior.
Open enclosure with ergonomic shape, reduces reflections and resonances, offers good visibility and easy installation thanks to threaded holes with multiple screw lengths.
Lightweight design with aluminum body and mass optimization that enables tracking that is both stable and smooth.
Technology & Materials
The coils are wound from high-purity copper UEW wire (30 µm) without gold plating, ensuring unadulterated transmission. The unit operates with a samarium-cobalt magnet combined with pure iron in the magnetic circuit for optimized magnetic field guidance.
The cantilever is a conventional aluminum tube; no exotic materials such as boron, ruby, or beryllium were used – this contributes to the naturalness and neutrality of the sound.
Vertical scanning angle is 25° , geometrically exact adjustment is recommended to develop the full potential of the Shibata stylus.
Sustainability & Manufacturing
The LMC-5 is manufactured with a high level of vertical integration. Materials such as aluminum, copper, high-quality magnets, and precise mechanics are durable and carefully crafted. The craftsmanship shows meticulousness in every detail—engraving, finish, and mechanical stability. Spare parts supply and service are part of the Luxman promise, even for such high-priced hardware.
Technical data (specs)
Type: Moving Coil (MC) cartridge
Internal resistance: 4.7 Ω at 1 kHz
Output voltage: 0.4 mV (1 kHz / 3.54 cm/s)
Tracking force: 2.1 – 2.3 g (2.2 g recommended)
Frequency response: 10 Hz – 35 kHz
Dynamic compliance: 8 × 10⁻⁶ cm/dyne (at 100 Hz)
Weight: approx. 8.5 g
Recommended termination resistance: ≥ 40 Ω, for step-up transformers 2.5-10 Ω
Stylus: Shibata Profile
Cantilever: 0.5mm aluminum tube
Channel separation: approx. 28 dB
Balance (difference between channels): approx. 0.5 dB
Test reports / press reviews
Hi-Fi World writes:
"I was impressed by the deep, classic mousiness of the LMC-5. The soundstage, transmission, and physicality are commendable right from the start. It shows no signs of excessive treble emphasis, offering a relaxed, smooth reproduction with a rich midrange."
Stereophile judges:
"The LMC-5 impresses with rich sound and pure, detailed, and highly illustrative reproduction, immediately out of the box. The midrange is open, and the upper mid and high frequencies are characterized by fine detail, without harshness. Bass and depth sound harmonious and controlled."
Background / History / Development
Luxman hasn't had a new MC cartridge in its lineup for decades – the LMC-5 marks its comeback. Developed by a team dedicated to uniting sound quality, natural reproduction, and technical precision. Drawing on experience in phono preamplifiers and tonearms, and the brand's reputation, this cartridge was designed to work seamlessly with both classic and modern systems.
Basic knowledge
Moving Coil (MC) Cartridge: With an MC, the coils are movable, which can result in lower moving mass and typically allows for better detail and dynamic response.
Shibata Stylus Profile: A cut that provides a larger contact area with the groove, especially at high frequencies and inner grooves, thus achieving better tracking.
Termination resistance & load: The termination resistance of the phono preamplifier is important for optimal cartridge performance. Too low a resistance can dampen highs, while too high a resistance can affect resolution and balance.
