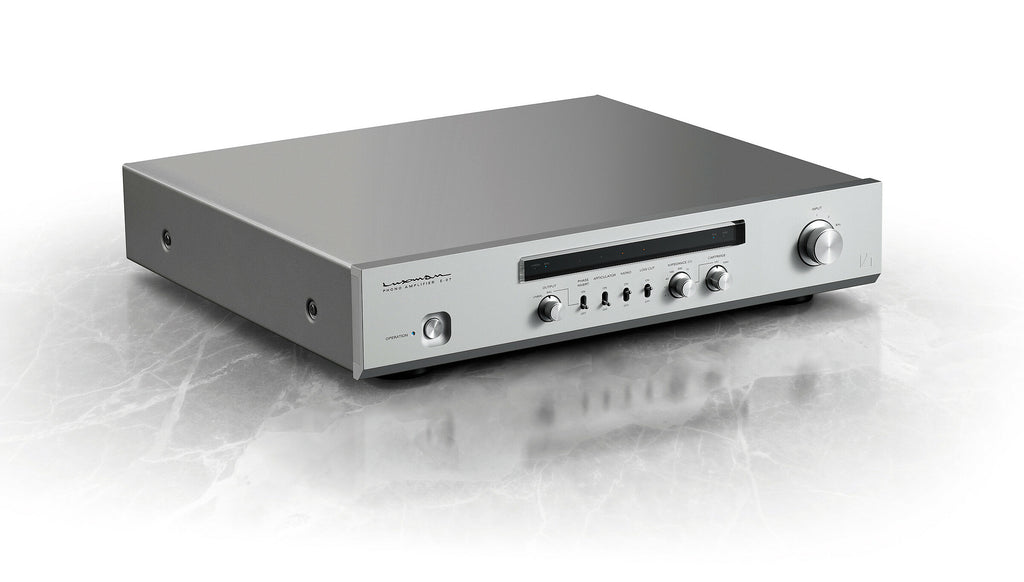

Luxman E-07 phono preamplifier
We think
The Luxman E-07 is a phenomenal phono preamplifier that brings out the best in vinyl without resorting to technical overkill. With its high quality , flexibility , and sonic fidelity , it demonstrates what analog listening can achieve today— sensitive , clear , and emotional at the same time. For listeners who use different cartridge systems , operate multiple turntables , or simply value maximum control over sound parameters, the E-07 sets a benchmark.
Product presentation

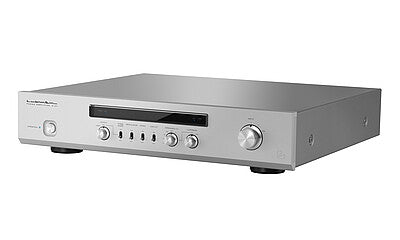

The Luxman E-07 is a solid-state phono equalizer preamplifier suitable for MM and MC cartridges . Its slim design , measuring just 9 cm tall, perfectly complements the Luxman Z series . Three inputs are available for MC systems : one balanced (XLR) and two unbalanced (RCA) . Two RCA inputs are available for MM cartridges . This allows the E-07 to operate multiple turntables and cartridges in parallel.

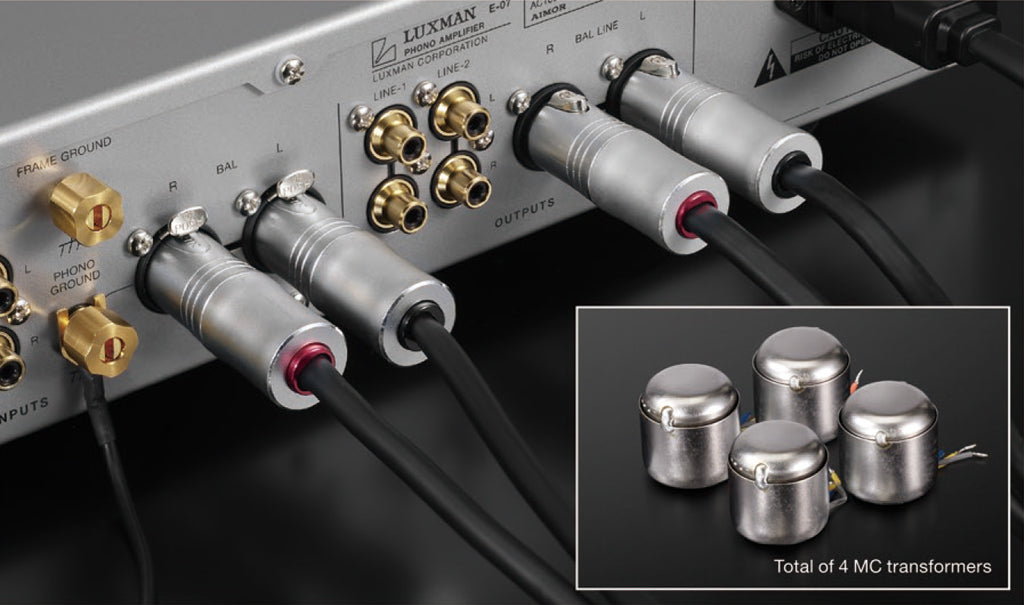

At the heart of the system are newly developed step-up transformers with a super-permalloy core , separate for each channel and with different gain settings that optimally match the selected impedance .
Special features

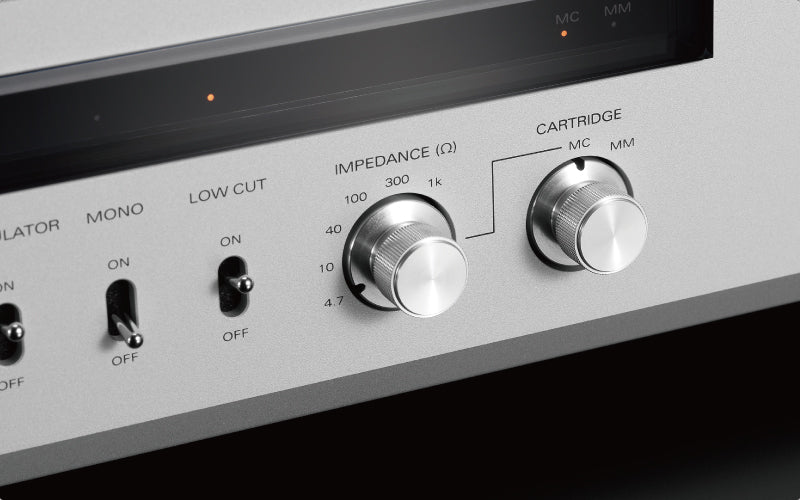

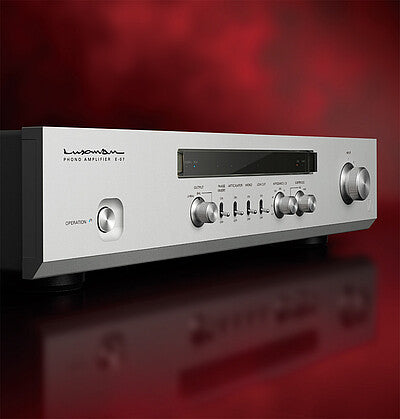

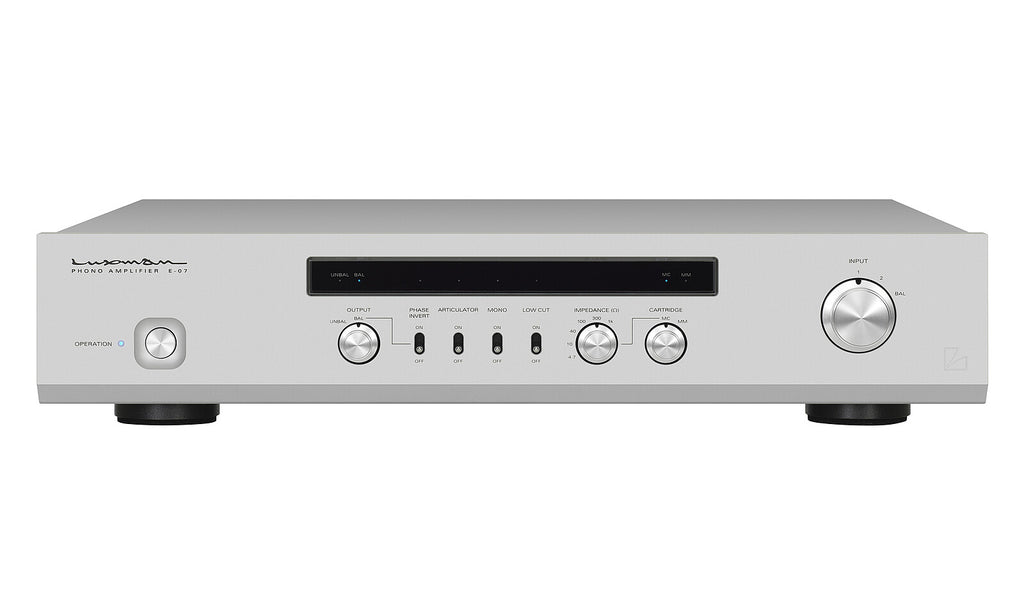

Switchable load impedances for MC cartridges are located directly on the front panel: 4.7 / 10 / 40 / 100 / 300 / 1 kΩ . For MM cartridges, various capacitances of 0 / 100 / 220 / 320 pF can be selected on the rear panel.

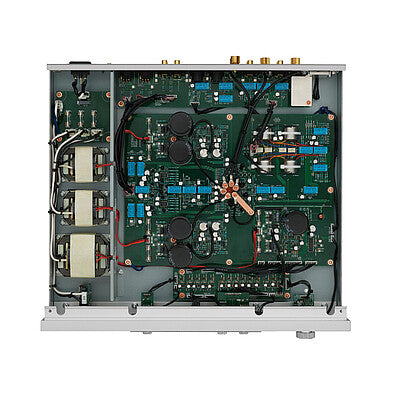

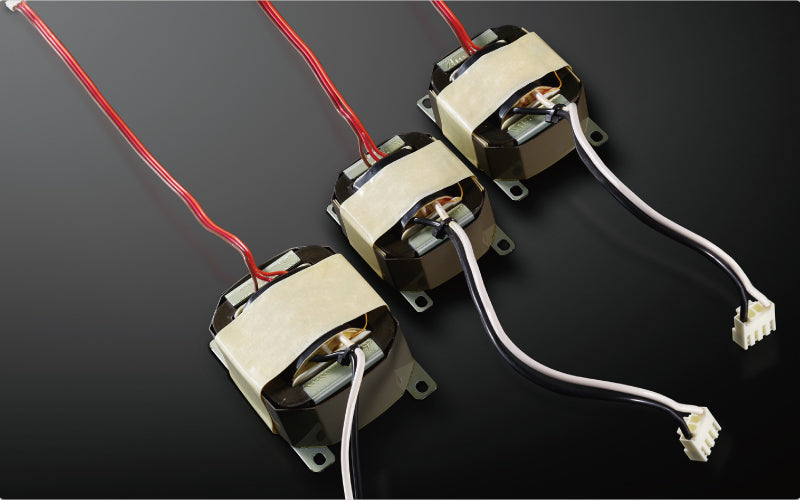

Triple transformer power supply : one transformer each for the left and right audio channels , plus a separate one for display, relay and control .

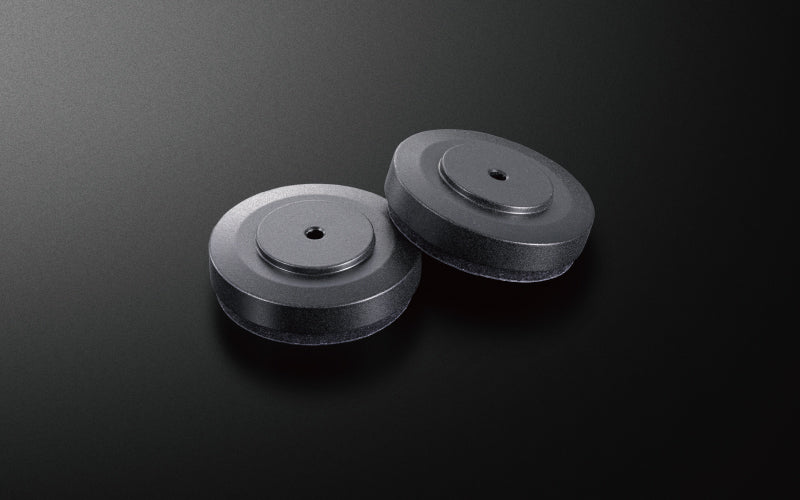

Vibration-optimized housing with double floor , solid chassis and high-quality feet to minimize resonances and noise .

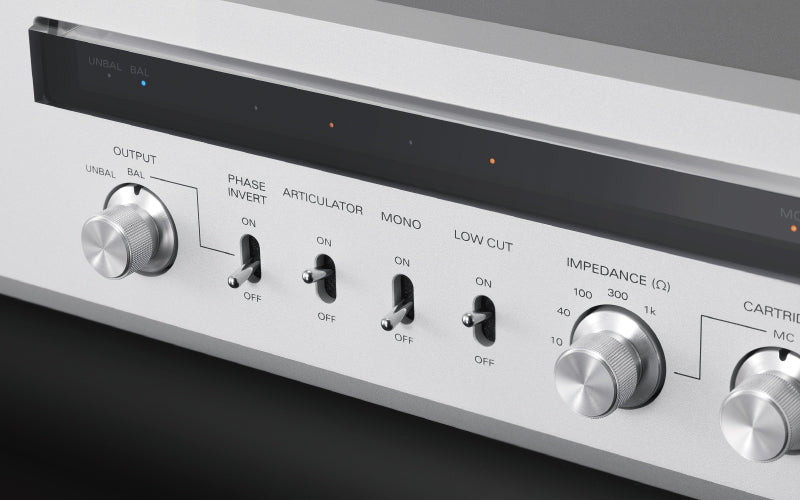

Articulator function for demagnetizing pickups , low-cut switch to reduce impact noise , mono mode and phase inversion for maximum adaptability.
Technology & Materials

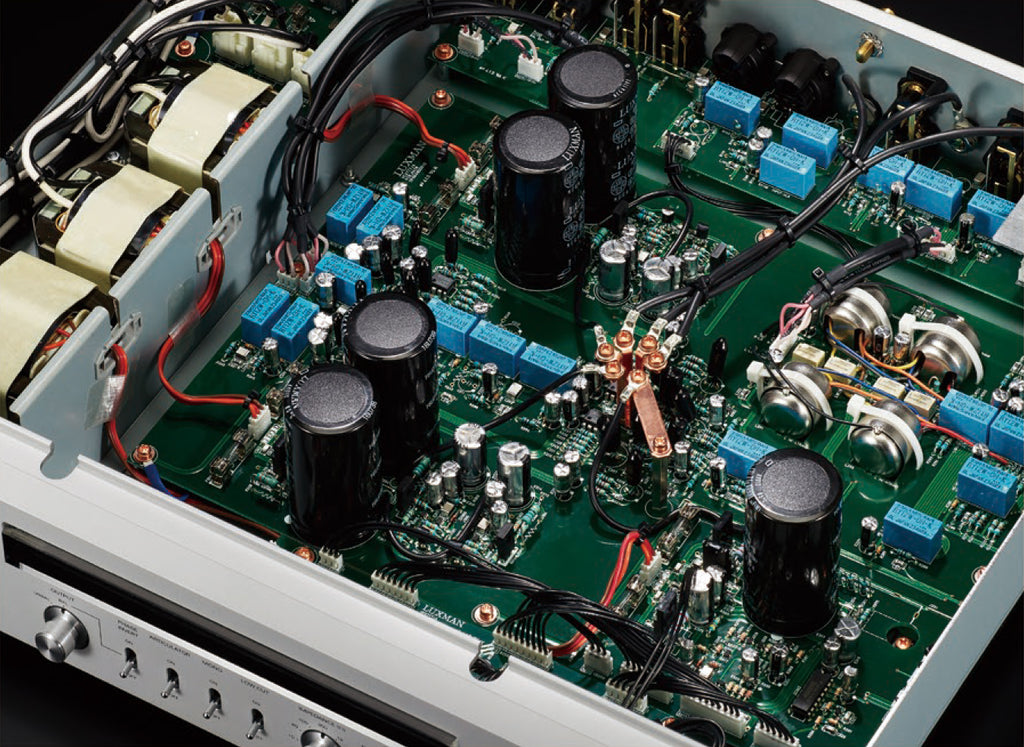

The input stage uses four parallel FETs per channel , minimizing noise and maximizing signal purity .
The RIAA equalization is highly precise, with only ±0.1 dB deviation for MM and ±0.3 dB for MC between 20 Hz – 20 kHz .

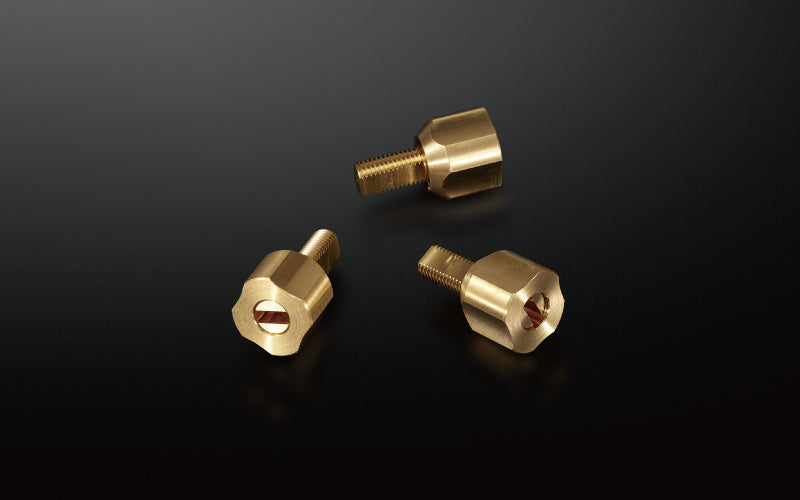

The internal wiring uses high-purity copper with shielding to prevent signal loss .
The input sensitivity is 3.2 mV for MM and only 0.12 mV in MC-Low mode , which means that even low-power MC systems can be operated perfectly.
Sustainability & Manufacturing
The E-07 is manufactured in Japan and stands for precision , durability , and longevity . Its solid housing , robust components , and service-friendly construction make it a lifetime investment . Luxman guarantees spare parts availability and ease of maintenance , which clearly distinguishes the E-07 from short-lived mainstream products.
Technical data (specs)

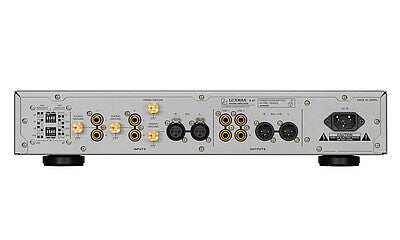

Inputs: 1 × Balanced MC (XLR), 2 × Unbalanced MC/MM (Cinch)
Outputs: 1 × Line Balanced (XLR), 2 × Line Unbalanced (Cinch)
Input sensitivity: MM 3.2mV; MC high 0.37 mV; MC low 0.12 mV
Gain: MM 38 dB; MC high 57 dB; MC low 66 dB
Load impedances: MC 4.7 / 10 / 40 / 100 / 300 / 1 kΩ; MM 34 / 47 / 56 / 100 kΩ
Capacitance adjustment (MM): 0 / 100 / 220 / 320 pF
Frequency response: MM 20 Hz – 20 kHz (±0.1 dB); MC 20 Hz – 20 kHz (±0.3 dB)
THD: 0.003%
S/N Ratio (IHF-A): MM 88 dB; MC High 81 dB; MC low 78 dB
Channel separation: ≥ 80 dB
Power consumption: 13 W
Dimensions: 440 × 92 × 407 mm (W × H × D)
Weight: 13.2 kg
Test reports / press reviews
The German magazine lite-Magazin writes in its test “Luxman E-07 – Phono preamplifier at its finest”:
"The Luxman E-07 presents itself as an absolutely worthy anniversary preamplifier : This phono preamp showcases everything that defines the Japanese high-end manufacturer . It impresses with its elegant design , genuine hi-fi flair , and excellent material and manufacturing quality . It impresses acoustically thanks to its sophisticated amplifier construction , extreme low noise , and outstanding purity . In playback, it shines with magnificent clarity , superb resolution , a high level of detail —and an overall harmonious performance . The E-07 also makes everything possible : thanks to its extensive capacitance and impedance adjustments , even exotic pickup systems can be operated."
Background / History / Development
Developed to celebrate the 100th anniversary, the Luxman E-07 is the new reference phono preamplifier in the Luxman range. The goal was to combine the highest sound quality with flexible adaptability . The dual-mono construction , the newly developed step-up transformers , and the optimized chassis design are expressions of a consistent further development of the Luxman tradition.
Basic knowledge
Non-Feedback circuit: An equalizer preamplifier without classic negative feedback, for a more natural sound and faster transients .
Step-up transformer: Amplifies the extremely weak signals of MC systems to a usable level. The super permalloy cores ensure maximum signal purity.
Load impedance and capacitance matching: Crucial for optimal pickup matching . If these values are incorrect, treble loss , coloration, or distortion can occur. The E-07 offers one of the most comprehensive adjustment options on the market.
